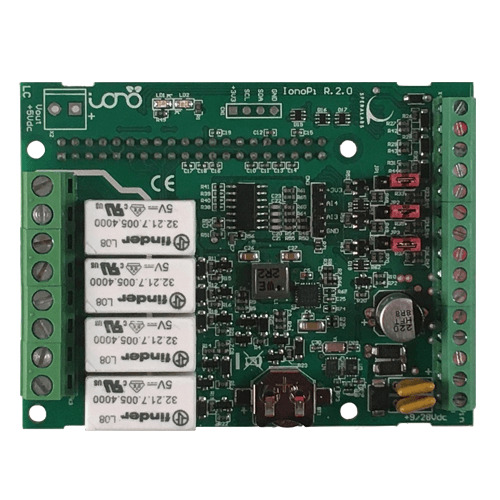

Iono Pi Board
Industrial Raspberry Pi expansion board featuring digital and analog inputs, power relay outputs, open-collector outputs, and versatile I/O lines supporting I2C, 1 Wire, Wiegand, and other digital protocols. Includes a wide range power supply and Real Time Clock (RTC). Fully compliant with CE, FCC, and IC standards.
DESCRIPTION
The Iono Pi board transforms the Raspberry Pi into a powerful and versatile controller by adding a wide range of industrial grade digital and analog I/Os, power relay outputs, and support for standard communication interfaces such as 1 Wire and Wiegand features typically found in modern PLCs.
This expansion board serves as the foundation of the Iono Pi Module and the Iono Pi Touch Display, and can also be purchased separately for testing, prototyping, or integration into custom embedded projects.
FEATURES
Mounting:
- Standard 40 pin GPIO connector compatible with Raspberry Pi
- Power and I/O connections via screw terminal block
Power Supply:
- 9–28V DC input with surge and reverse polarity protection, plus a 2.2A resettable fuse
- Provides up to 4.0A (at 24V DC) to the Raspberry Pi’s 5V input pins
Inputs/Outputs:
- 4 power relay outputs rated at 6A / 250V AC
- 2 analog voltage inputs (0–30V)
- 2 additional analog inputs (0–3V) available on internal pin headers
- 7 configurable digital I/O pins supporting potential-free or voltage inputs, TTL inputs/outputs, and open collector outputs
- Integrated 1 Wire and Wiegand interfaces
Reliability and Security:
- Real-Time Clock (RTC) with replaceable backup battery
- Optional Microchip ATECC608A/B secure element for hardware level authentication and encryption
Additional Features:
- GPIO-controlled LED indicator
- Power on status LED
