CAN and Dual RS-485 X2-Series Expansion Board - Strato Pi Max
Strato Pi Max expansion board designed to add robust and isolated industrial communications to your system.
Includes:
✅One isolated CAN V2.0B interface
✅Two isolated RS485 ports
✅ESD protected design
Ideal for reliable and noise resistant communication in industrial environments
DESCRIPTION

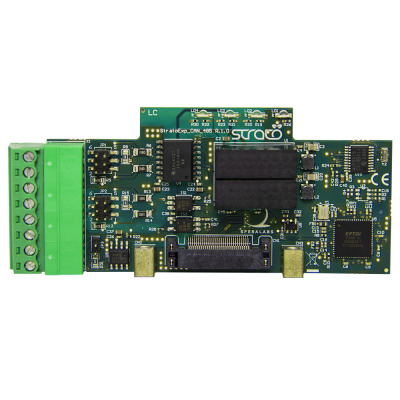

The X2-Series X2BS10XC44 CAN and Dual RS-485 Expansion Board is designed to extend the communication capabilities of the Strato Pi Max.
It features one galvanically isolated CAN V2.0B interface and two galvanically isolated RS-485 ports, enabling robust and reliable serial communication for industrial environments.
The CAN interface connects directly to the Compute Module’s SPI bus, while the RS-485 ports are managed via an integrated FTDI FT2232HQ high-speed USB 2.0 dual-channel UART/serial converter.
FEATURES
- One galvanically isolated CAN V2.0B interface supporting speeds up to 1 Mb/s, with optical isolation and ESD protection
- Two galvanically isolated RS-485 interfaces supporting speeds up to 115,200 bps, with optical isolation and ESD protection
- Independent galvanic isolation between CAN and RS-485 sections
- Configurable local TX/RX echo on RS-485 channels
- Front-panel LEDs showing power status, CAN RX/TX activity, and RS-485 RX/TX activity for each port
