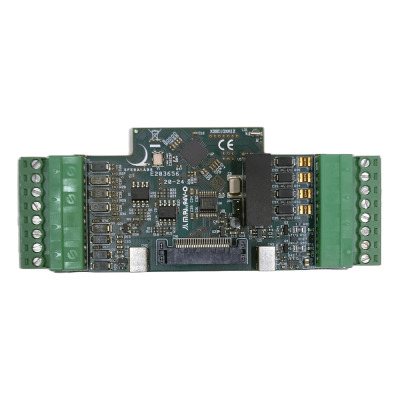

Industrial Analog Inputs X2-Series Expansion Board - Strato Pi Max
Strato Pi Max expansion board designed for accurate analog measurement and temperature monitoring in industrial environments.
Includes:
✅Four ±20 V voltage inputs
✅Four 0–20 mA current inputs
✅Two isolated Pt100 and Pt1000 channels
✅Protected 5 V auxiliary output
✅Two digital I/O lines for 1 Wire, Wiegand or I2C devices
Ideal for precision sensing, data acquisition and advanced industrial monitoring
DESCRIPTION
The X2-Series X2BI10XAIZ Industrial Analog Input Expansion Board is designed for seamless integration with the Strato Pi Max.
It includes four galvanically isolated analog inputs for voltage and current signals (0–10 V and 4–20 mA) from standard industrial sensors, as well as two dedicated channels for PT100 and PT1000 temperature probes. A 24-bit ADC ensures high precision in signal measurement.
Each voltage input can be configured as unipolar or bipolar and supports both single-ended and differential modes.
The board also provides a 5 V auxiliary power output and two 5 V digital I/O lines, compatible with communication standards such as 1 Wire, Wiegand, and I²C.
FEATURES
- Four analog voltage inputs (±20 V)
- Four analog current inputs (0–20 mA)
- Two inputs for PT100 or PT1000 temperature sensors
- Galvanic isolation between analog and digital sections
- Two 5 V digital I/O lines supporting 1 Wire, Wiegand, and I²C protocols
- 5 V DC auxiliary output with protection against overcurrent and reverse current
- Front panel LED indicating power status
