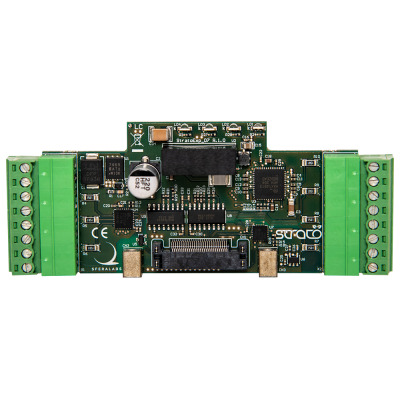

Industrial Digital I/O X2-Series Expansion Board - Strato Pi Max
Strato Pi Max expansion board designed for reliable digital signal handling with fully isolated inputs and powerful configurable outputs.
Includes:
✅Seven IEC 61131 2 compliant 0–36 V digital inputs
✅Seven 640 mA outputs
✅High side or push pull configuration
✅Dedicated 12–28 V isolated power supply
Ideal for industrial control, monitoring and robust automation setups
DESCRIPTION
The X2-Series X2BI10XD7 Industrial Digital I/O Expansion Board is engineered for use with the Strato Pi Max, extending its digital interface capabilities.
It offers seven IEC 61131-2 compliant digital inputs (0–36 V, current-sinking type) and seven powerful outputs (640 mA, 12–28 V), ideal for driving industrial devices.
Each output can be configured as a high-side switch or a push-pull driver, supported by a dedicated on-board power input that operates independently from the Strato Pi Max power supply.
Both inputs and outputs are galvanically isolated from the main controller and include integrated diagnostic features for reliable operation and troubleshooting.
FEATURES
- Dedicated 12–28 V DC power supply for I/O section
- Seven industrial digital inputs (0–36 V, current-sinking) compliant with IEC 61131-2, with diagnostic features (MAX22190-based)
- Seven outputs rated at 640 mA (12–28 V), configurable as high side or push-pull drivers for fast switching (MAX14912/MAX14913-based)
- Protection against ESD and transient overvoltage on inputs
- Front panel LEDs indicating power status, output and input faults, and I/O undervoltage
