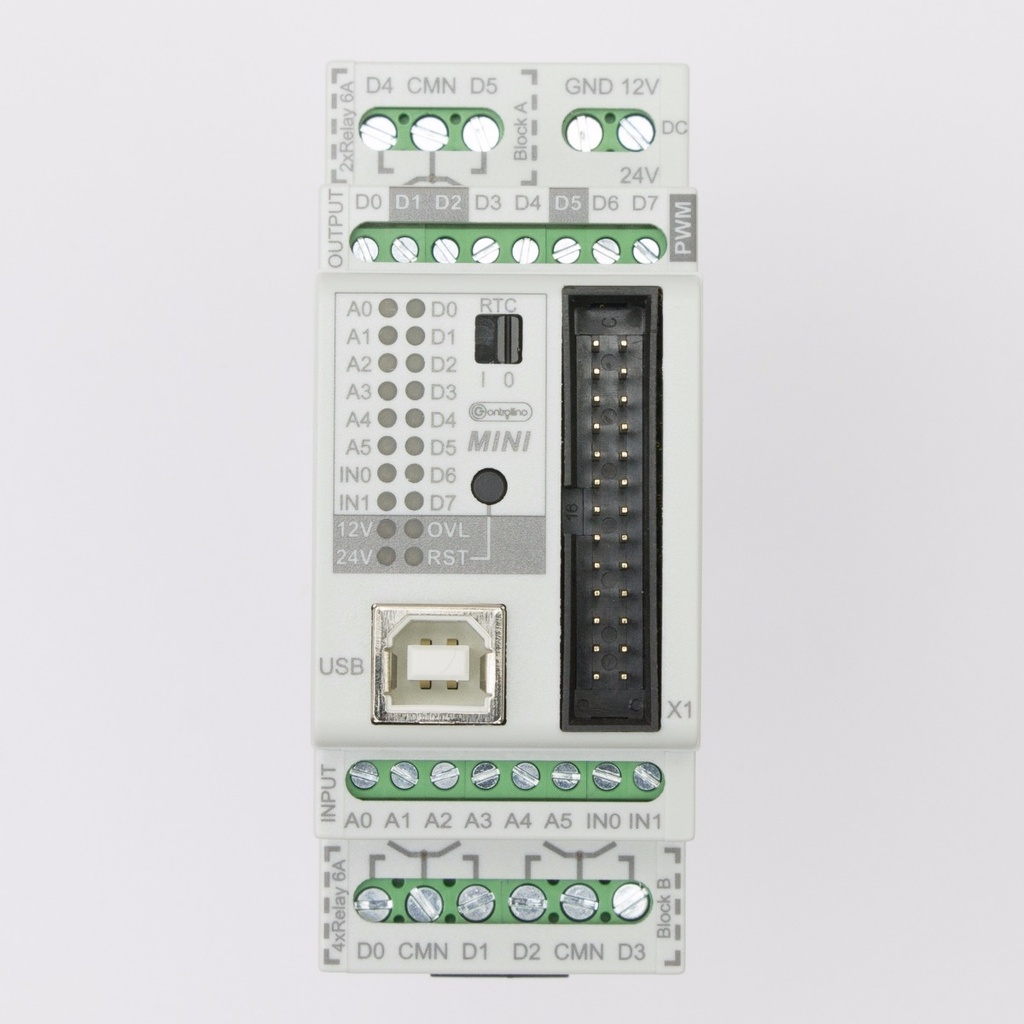

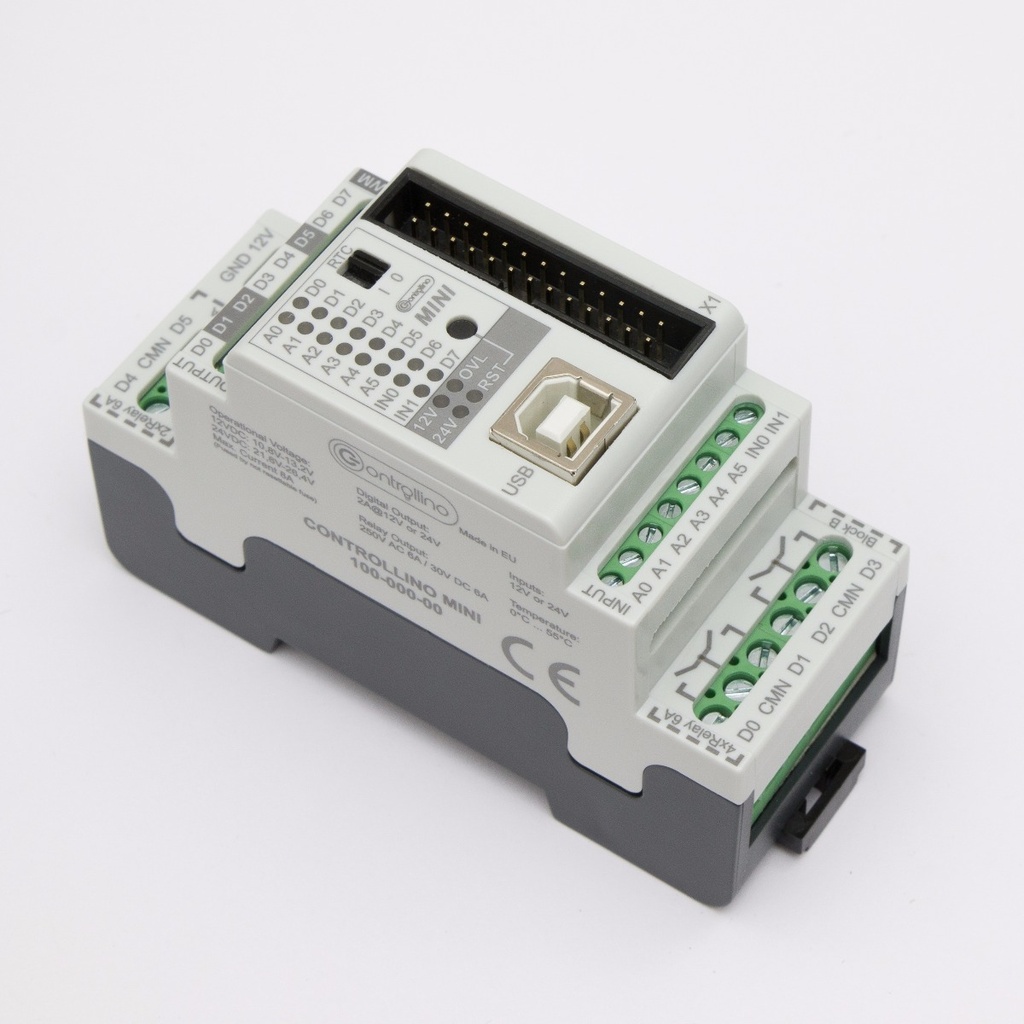

CONTROLLINO MINI
Powered from 12Vdc to 24Vdc
Inputs (8 IN):
4x Analog (0-10Vdc) / digital (24Vdc)
2x Digital Input
2x Analog Input
Outputs (14 Out):
6x Relay Outputs
8x Digital Outputs (parallel to digital, galvanic ins.)
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
4x Analog (0-10Vdc) / digital (24Vdc)
2x Digital Input
2x Analog Input
6x Relay Outputs
8x Digital Outputs
Ethernet, RS485, ...
| # CPU Type #: Controllino |
| # Device #: PLC |
| # Inputs #: 1-10 |
| Digital Inputs: 1-10 |
| Analog Inputs (Included as a Digitlal Input): 8 |
| # Relay #: 1-10 |
| # Outputs #: 11-20 |
| Digital Outputs *See technical details: 8 |
| Relay Outputs *See technical details: 6 |
| SPI: Yes |
