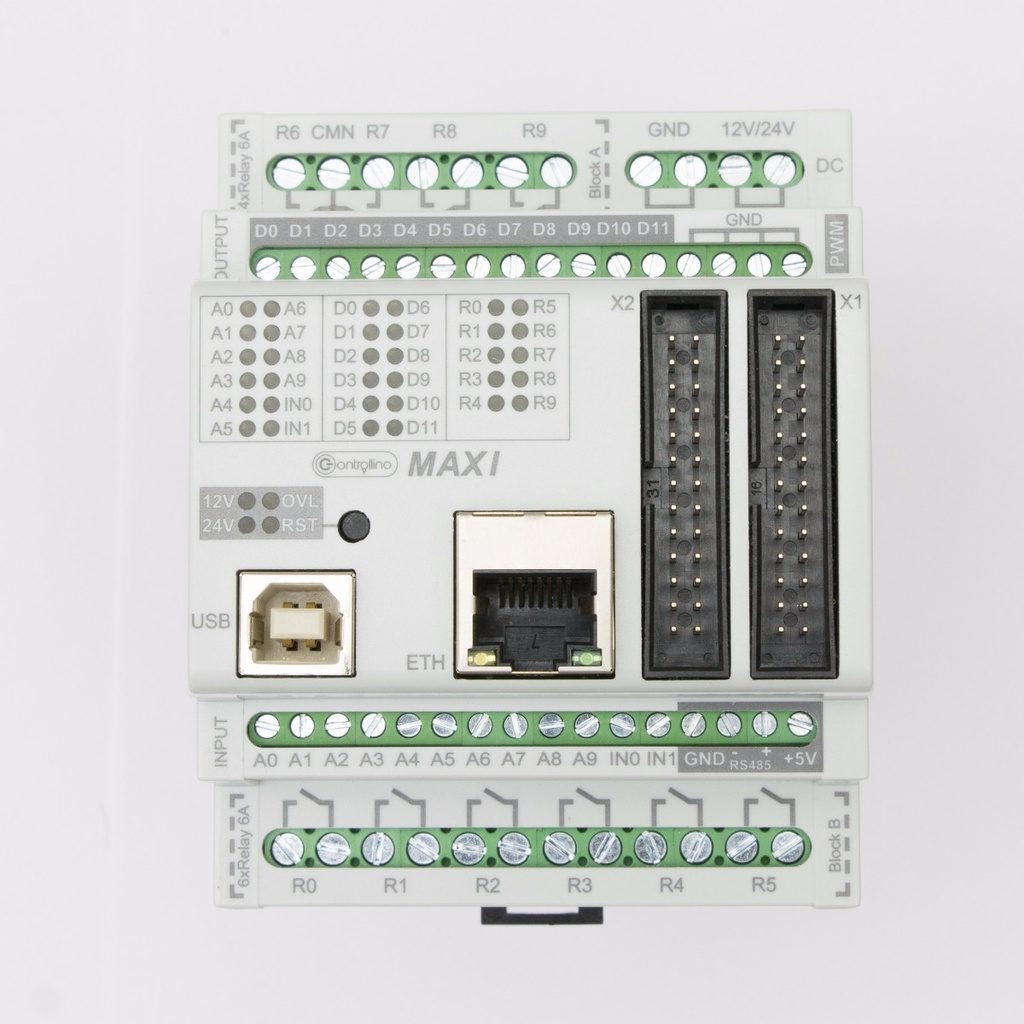

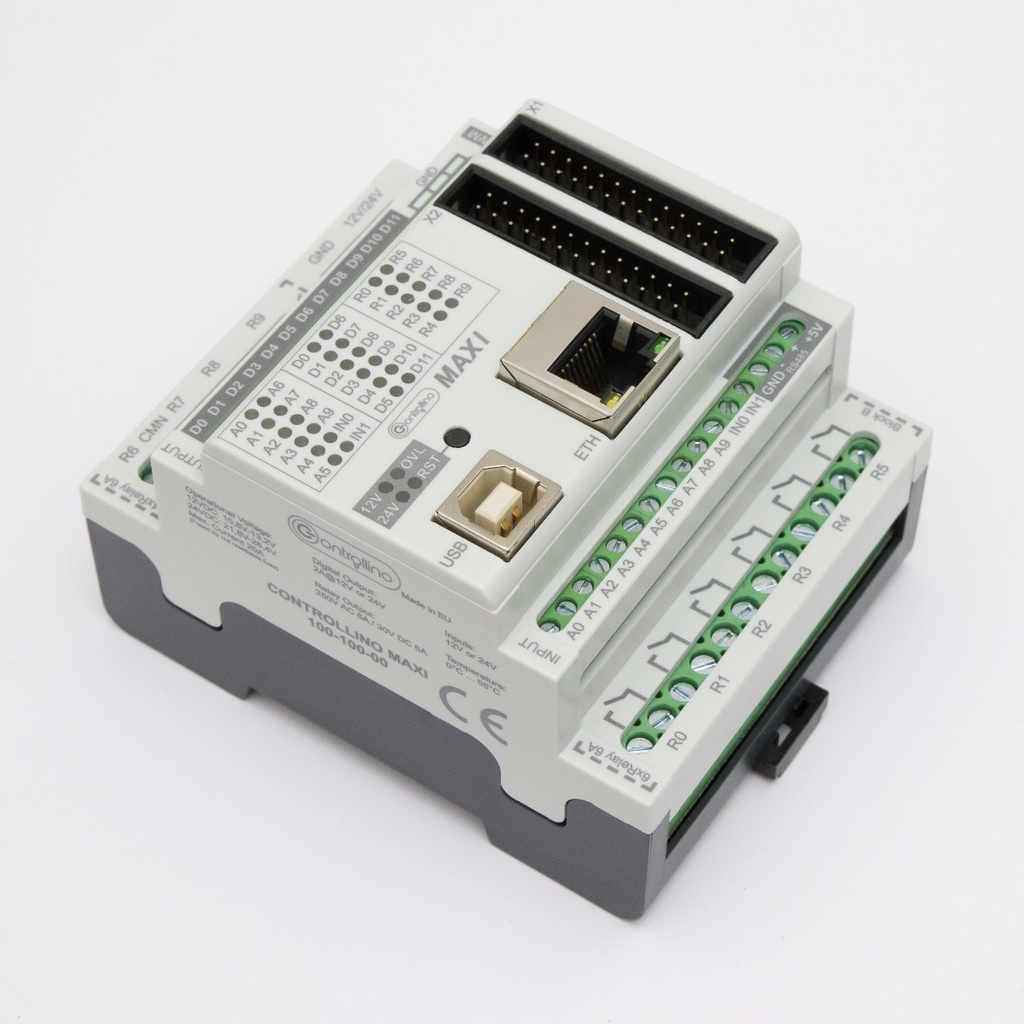

CONTROLLINO MAXI
Powered from 12Vdc to 24Vdc
Inputs (12 IN):
10x Analog (0-10Vdc) / digital (24Vdc)
2x Digital Input / interrupt.
Outputs (22 Out):
10x Relay Outputs
12x Digital Outputs
Communications
Ethernet (RJ45, 10/100Mbps)
RS485
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
10x Analog/Digital Inputs
2x Digital Inputs / Interrupt
10x Relay Outputs
12x Digital Outputs
Ethernet, RS485, ...
| # CPU Type #: Controllino |
| # Device #: PLC |
| # Inputs #: 11-20 |
| Analog Inputs (Included as a Digitlal Input): 10 |
| # Relay #: 1-10 |
| # Outputs #: 21-30 |
| Digital Outputs *See technical details: 12 |
| Relay Outputs *See technical details: 10 |
| Ethernet: Yes |
| RS485: Yes |
| I2C: Yes |
| SPI: Yes |
