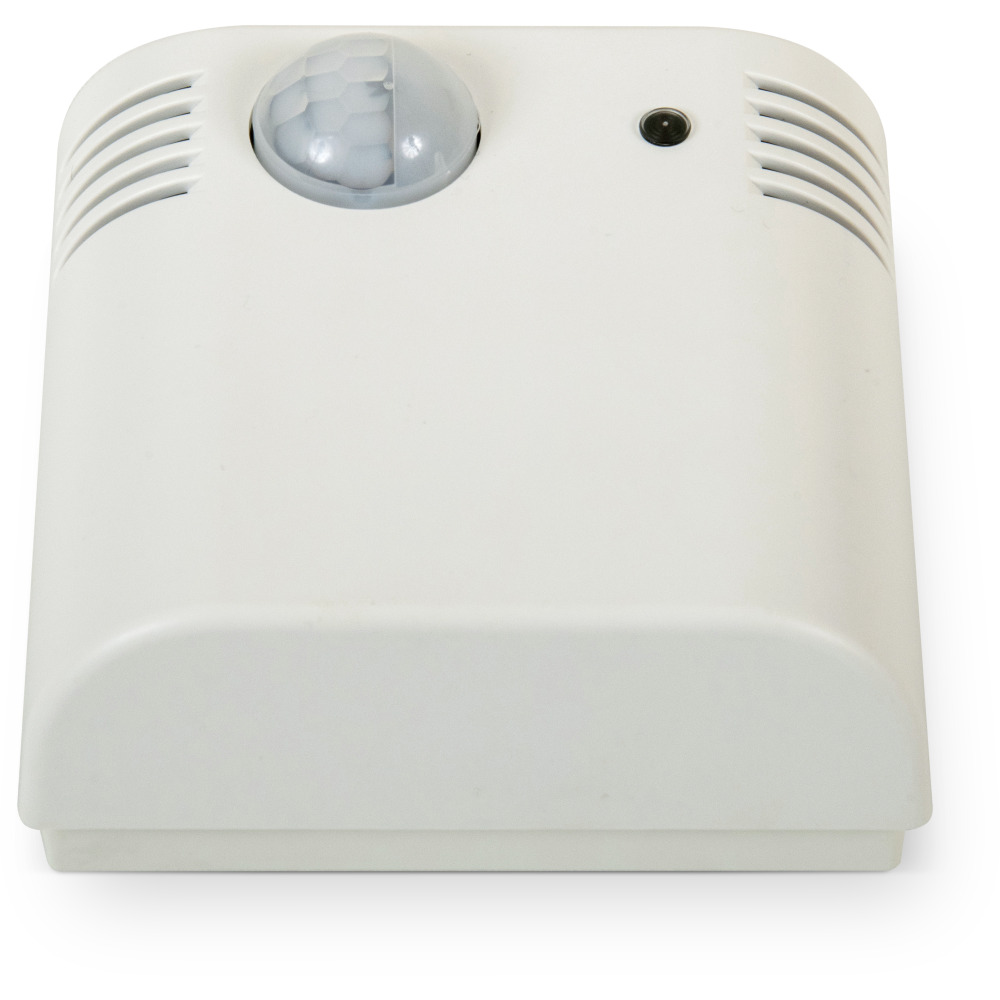

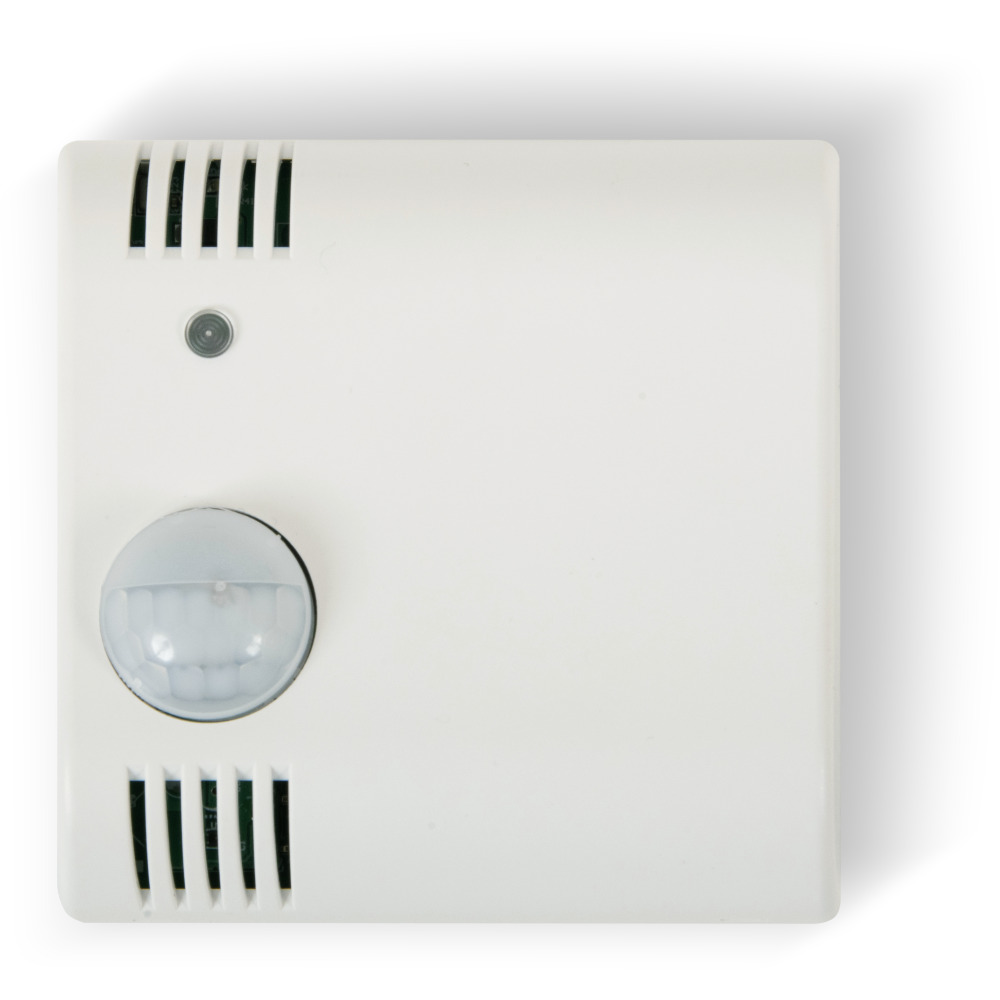

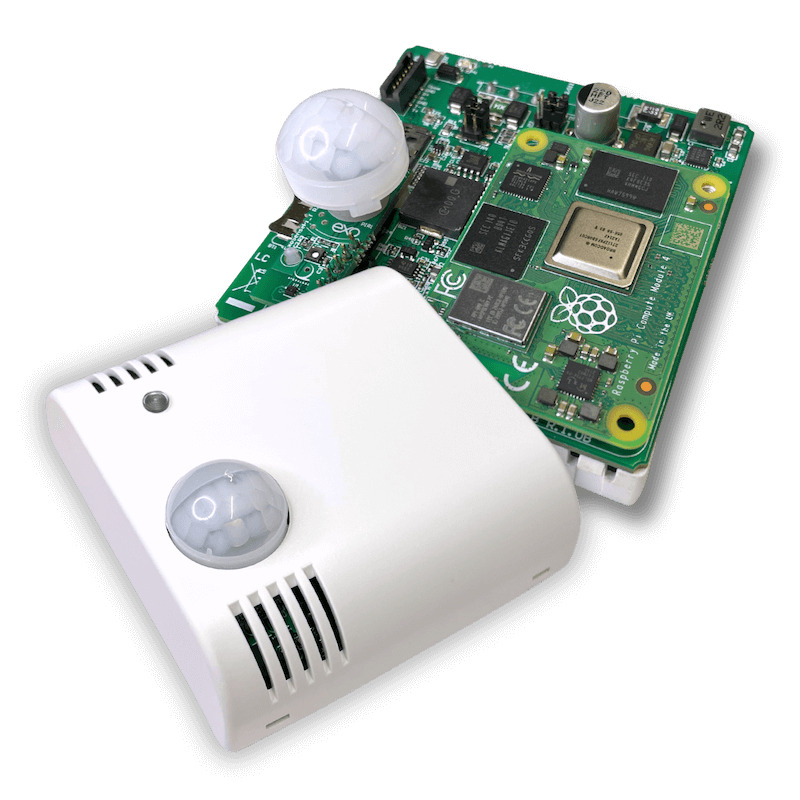

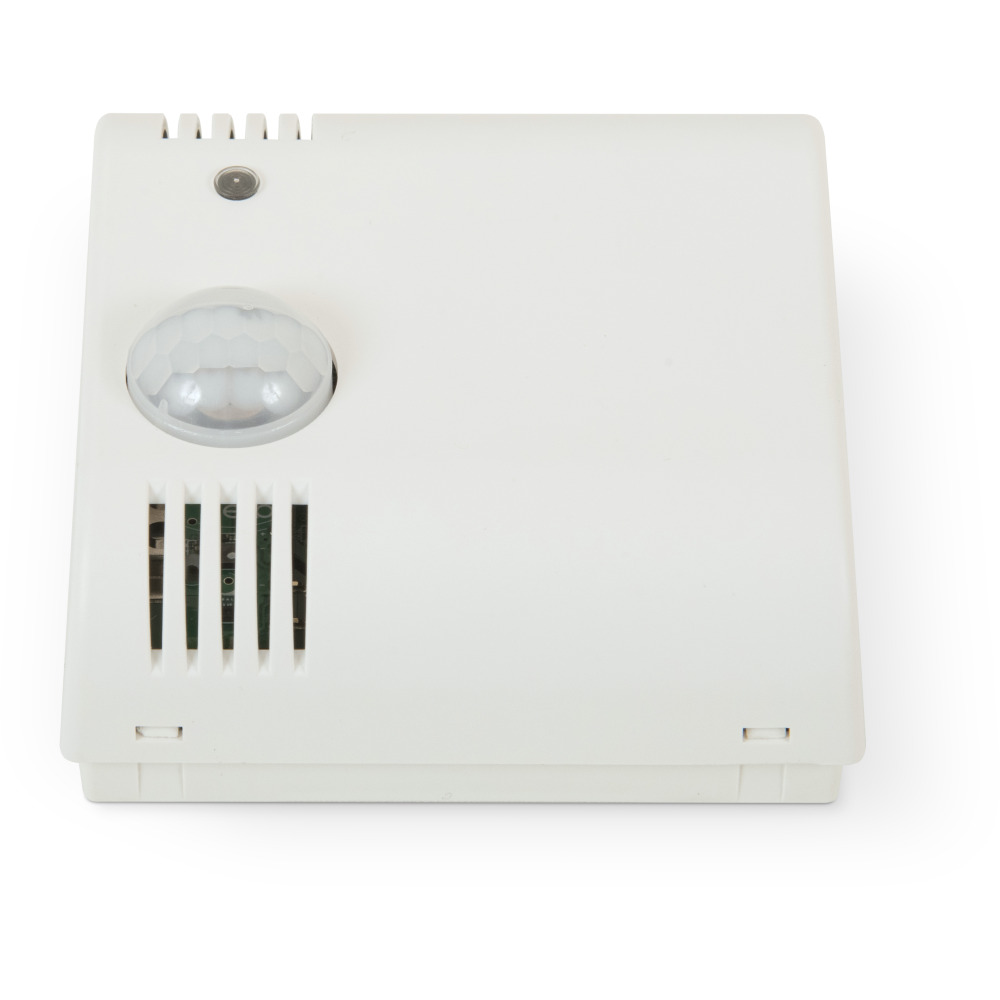

Exo Sense RP is a highly adaptable indoor environmental monitoring device. It brings together the flexibility of the Raspberry Pi RP2040 microcontroller with a rich set of sensors and I/O options.

The unit integrates temperature, humidity, air quality, light, and PIR motion sensors, along with a microphone for ambient noise measurement and audio recording. It also includes two digital I/O lines, an open-collector output, and a real-time clock with backup battery. An optional earthquake detection module can be factory-installed.

For wired communication, Exo Sense RP features an ESD-protected RS-485 interface, supporting Modbus as well as other half-duplex serial protocols.

At its core, the RP2040 microcontroller provides a dual-core Arm Cortex-M0+ CPU running up to 133 MHz, with 264 KB of SRAM and 16 MB of onboard Flash memory.

Programming is simplified via a concealed USB 1.1 port that allows easy flashing of the microcontroller.

Sensors

• Temperature and humidity sensing
• VOC air quality measurement
• Light level sensor
• Microphone for sound monitoring, recording, and processing
• PIR sensor for motion detection

Mounting

• 80×80 mm ABS enclosure for wall mounting, with quick snap-in terminal block

Power Supply

• 9–28 Vdc input range with surge and reverse polarity protection
• 1.1 A resettable fuse

Inputs/Outputs

• 2 × digital inputs or TTL-level I/O, supporting 1-Wire, I2C, and Wiegand protocols
• 1 × open-collector output

Connectivity

• RS-485 interface linked to the RP2040 UART, protected against ESD
• Micro-USB port for RP2040 programming and debugging

Additional Features

• LED indicator driven by GPIO
• Piezoelectric buzzer with GPIO/PWM control for audio feedback
• Real-time clock (RTC) with replaceable backup battery
• Integrated Microchip ATECC608 secure element chip

Optional (factory-installed on request)

• Earthquake detection module
