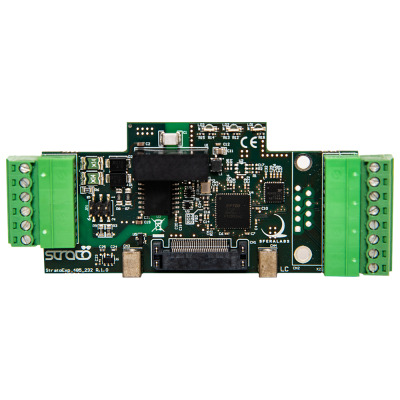

RS-232 and RS-485 X2-Series Expansion Board - Strato Pi Max
Strato Pi Max expansion board designed for reliable and isolated industrial serial communication.
Includes:
✅One isolated RS485 port
✅One RS232 port with hardware flow control
✅Stable and noise resistant design
Ideal for professional automation and communication systems
DESCRIPTION
The X2-Series X2BS10X43 RS-232 and RS-485 Expansion Board enhances the Strato Pi Max with two additional serial communication interfaces: one galvanically isolated RS-485 port and one RS-232 port with hardware flow control.
Both interfaces connect to the Compute Module through an integrated FTDI FT2232HQ high-speed USB 2.0 to dual-channel UART/serial converter, ensuring fast and reliable data transmission.
FEATURES
- Standard RS-232 interface with hardware flow control and ESD protection, supporting speeds up to 115,200 bps
- Standard RS-485 interface with optical isolation and ESD protection, supporting speeds up to 115,200 bps
- Configurable local TX/RX echo on the RS-485 port
- Front-panel LEDs indicating power status and RX/TX activity for both RS-232 and RS-485 channels
